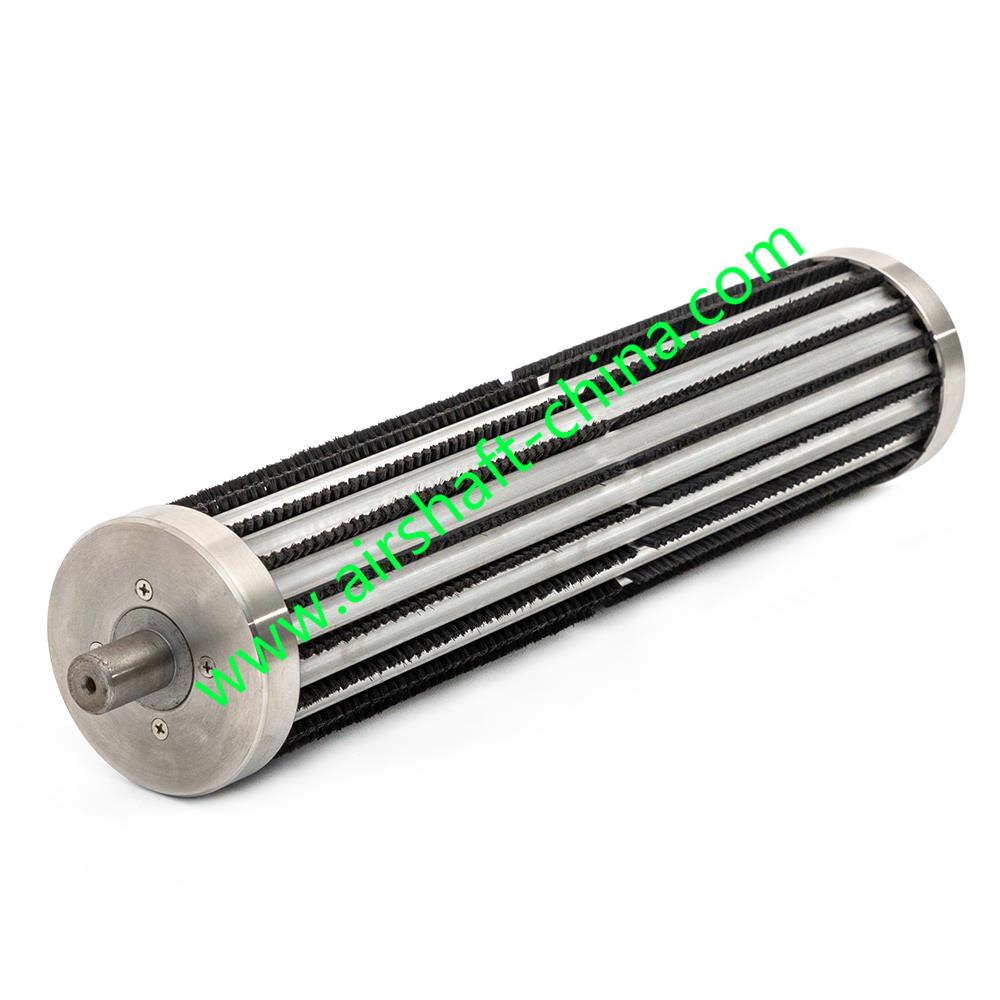

Brush Extension Roller

--1. Size:According to the drawings from Customer

--2. Production Time:Normal order is 12-15 Days, Hurry order is negotiable

--3. Packing: Paper box / exporting level wooden box

--4. Shipping Solution:By Sea/ By Air / By DHL/FEDEX/UPS/EMS/Special Line

--5. Certificate Supplier:ISO 9000 / CE / Rohs / Certificate of Origin .......

--6. After Sales:Technical video support

--7. Payment Method:T/T / Paypal /Credit Card
Availability:
Quantity:
Inquire Add to Basket

PDF Export

  (Content Writer: Mr Terrence Qi)

 --1. Brush Extension Roller Overall Function:

19

Brush Extension Roller is used for material Extension in Digital Printing Industry and Cutting/Slitting Machine.

With the tension of the material, the Brush on Opposite side of the roller will tilt. Then it can extend the material and make the material even and flattened.


For the longer using time and anticorrosion reason, the body of the Brush Roller is made by Aluminum and 2 sides are made by Stainless Steel.





    --2. Brush Extension Roller Feature----:

       For the Brush Extension Roller, this type surface is using Nylon Brush. It is the standard type, customer only need to offer the drawing, then we could make a quotation.


The standardized diameter of the Brush Roller is φ102mm and φ82mm.

Brush Quantity is 22pcs and 17pcs.

Brush Material is Nylon.



21






    --3. Our Aluminum Extension Roller Advantage：

64

      For the Extension Roller, in market there are a lot of sellers. But the quality is different, usually some products are weak in some points.

       For us, we made some revisement in Extension Roller according to user's using experience and made some upgrade in order to achieve better using experience.


Advantage:


1: We adopt Sandblasting Oxidation in its Surface Aluminum. Some other Aluminum Roller suppliers surface does not oxidize, it has no treatment.


2: The internal Steel pipe is precision tube, which does not lose weight and has good balance during working.


3: The slider of the Aluminum Roller is made of nylon 66, and the other suppliers are using plastic.


4: Some Main Plastic parts are changed into steel, and it has longer using time.


5: The End Caps are added at both ends, its surface looks for beautiful, and it can prevent material entering inside.




      --4. Aluminum Extension Roller Drawing：

The Aluminum Extension Roller price is based on its Dimension. Customers can using this example drawing to add dimension on it.


Can fill the Dimension of

1 2 3 4 5

extension roller (2)





       --5. More about us:

          We, R.J Machinery is confident to say we are a reliable Extension Roller factory in China and can make Aluminum Extension Roller in large quantity exporting supply and lower quantity customerization!



           Our goal is to make customer feel satisfied about the quality and price of the Extension Roller!



           We welcome if you would like to have an online factory tour!

           It only take 1 minute！

           This is the video of Our Factory will fully equipped Airshaft Manufactuering Devices.
