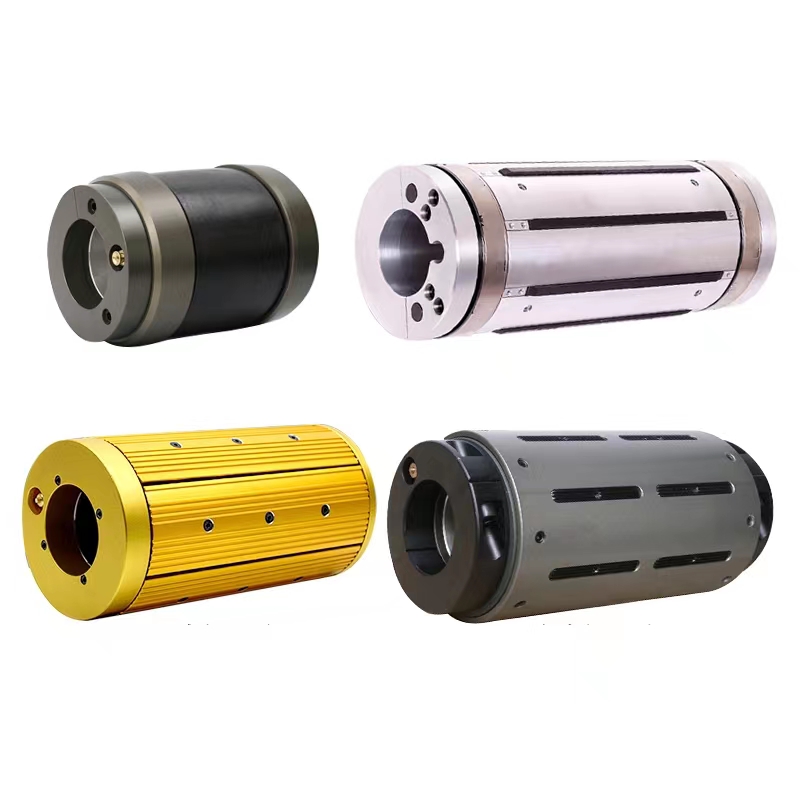

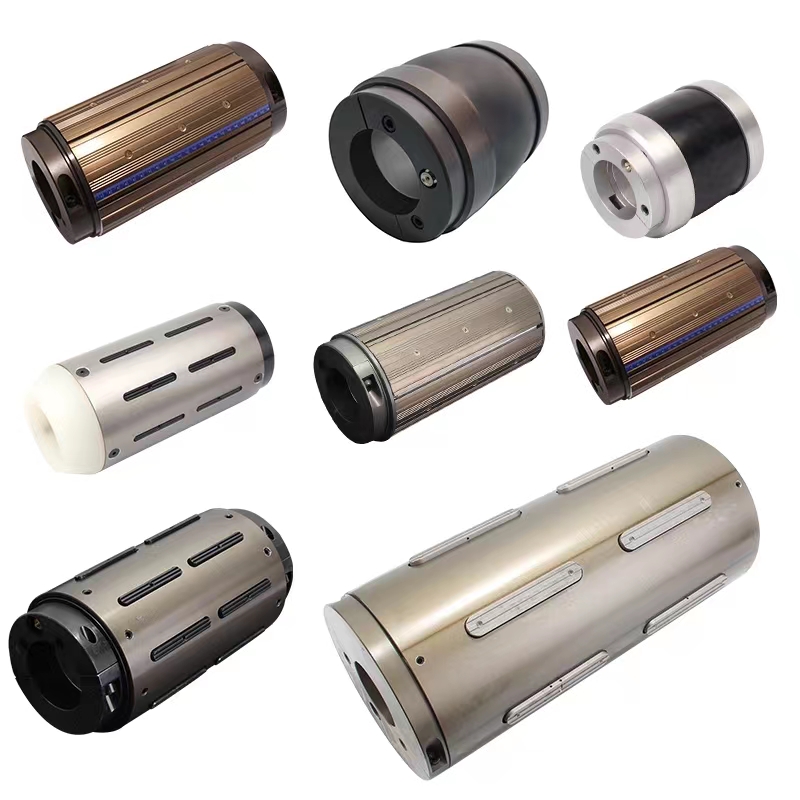

In most case, the Air shaft Adaptor body tube is made by aluminum and the expanding element is made by Steel or Aluminum. We shall make according to customer's requirements.
But as a professional and reliable Airshaft Manufacturer and Air shaft Supplier, if customer want to use it for a long time, we recommend customers to make a new Air Expanding Shaft directly. Because Penumatic Shaft using is more stable if compare with Shaft Adaptors and could avoid some potension problems after long time using.

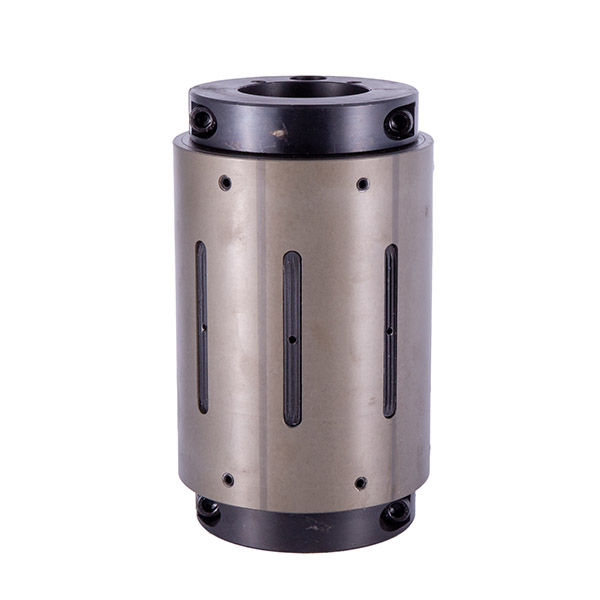

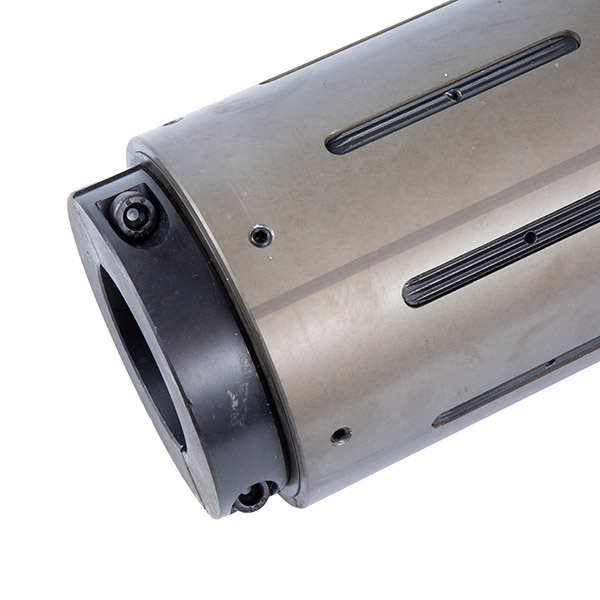

As our standard, the Airshaft Adaptor Lug type is the most often used in market, we have stock if you need it.
Tailor make according to requirement
Tailor make according to requirement
Our normal Airshaft body material:
---Aluminum
Other Material is ok for tailor make
The length of the body tube of the airshafts adaptor will decide the cost.
(For more details please contact Airshaft sales: TerrenceQi@outlook.com)
Don't worry weight load and dimension, as a reliable Airshaft Factory, We accept all dimension Air shaft tailor making!
Bigger than Bigger
Click the Link and DownLoad PDF to GET the Dimension drawing!
1. Standard 3-6inch Lug type Airshaft Adaptor (in stock).pdf
2. Standard Multitube Airshaft Adaptor.pdf
Technical Data of the Pneumatic Adaptor of Airshaft
Specification | 3-6 inch Airshaft Adaptor | 3-8 inch Airshaft Adaptor | 3-10 inch Airshaft Adaptor |
OD before inflation | 150mm | 200mm | 250mm |
OD after inflation | 158mm | 208mm | 258mm |
Suitable Core ID | around 152.4mm | around 203mm | around 253mm |
Estimated Weight | 11kg | Depend on drawing | Depend on drawing |
The Diemension is ok for free changing!
We accpet tailor making according to different customer requirements!
If the Air shaft adaptor using poor quality air valve, then it will often leaking air, and then result into using trouble!
Normal Airshaft Suppliers are using the copper material air valve in order to saving cost,
However, This type Copper Valve have a higher possibility of air leaking,
For us, we are using the high quality Stainless Steel Air Valve, it is more more stable in quality!
Better Staineless Steel Airshaft Air Valve 【√】
Normal Copper Air valve for Air shaft
We don't want to see the machine stop production just for reason of a small Air valve.
Therefore, a good AirShaft with better Air Inflation Valve will help users to avoid a lot of using troubles.
We Guarantee the long time using of Air inflation Valve on the Airshaft Adaptor!
The air will go through into the Black Rubber tube, then expand the whole lugs to grab the core on airshafts adaptors.
If the airshaft adaptor inner bladder have low quality, it will result into the uneven expanding. It means most part of the lugs are not expanding.
As a result, the Air shaft adaptors cannot hold the core. It would caused big trouble, need to disassemble the whole airshaft to replace this parts. (Time consuming and wasting)
So, our company are using high quality NBR Rubber, It can ensure the good using of the airshaft.

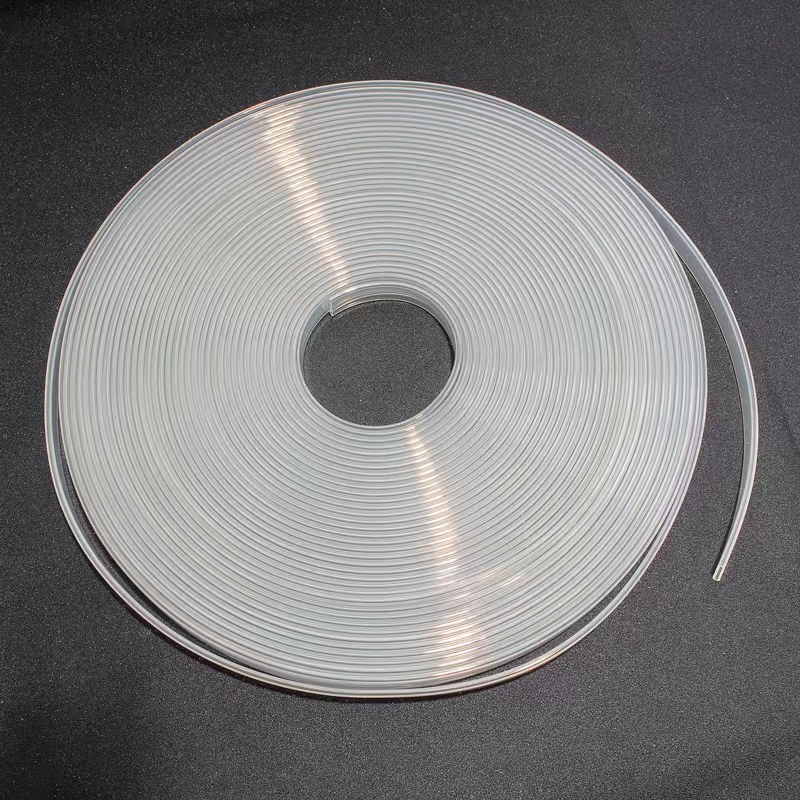

Note: Multitube Type Adaptor is still using the White TPU tube!
See attached phoot:
Our goal is to make customer feel satisfied about the quality and price of the Airshaft!
We welcome if you would like to have an online factory tour!
It only take 1 minute!
This is the video of Our Factory will fully equipped Airshaft Manufactuering Devices.
Using wechat and Scan this code to talk with Airshaft Sales!
