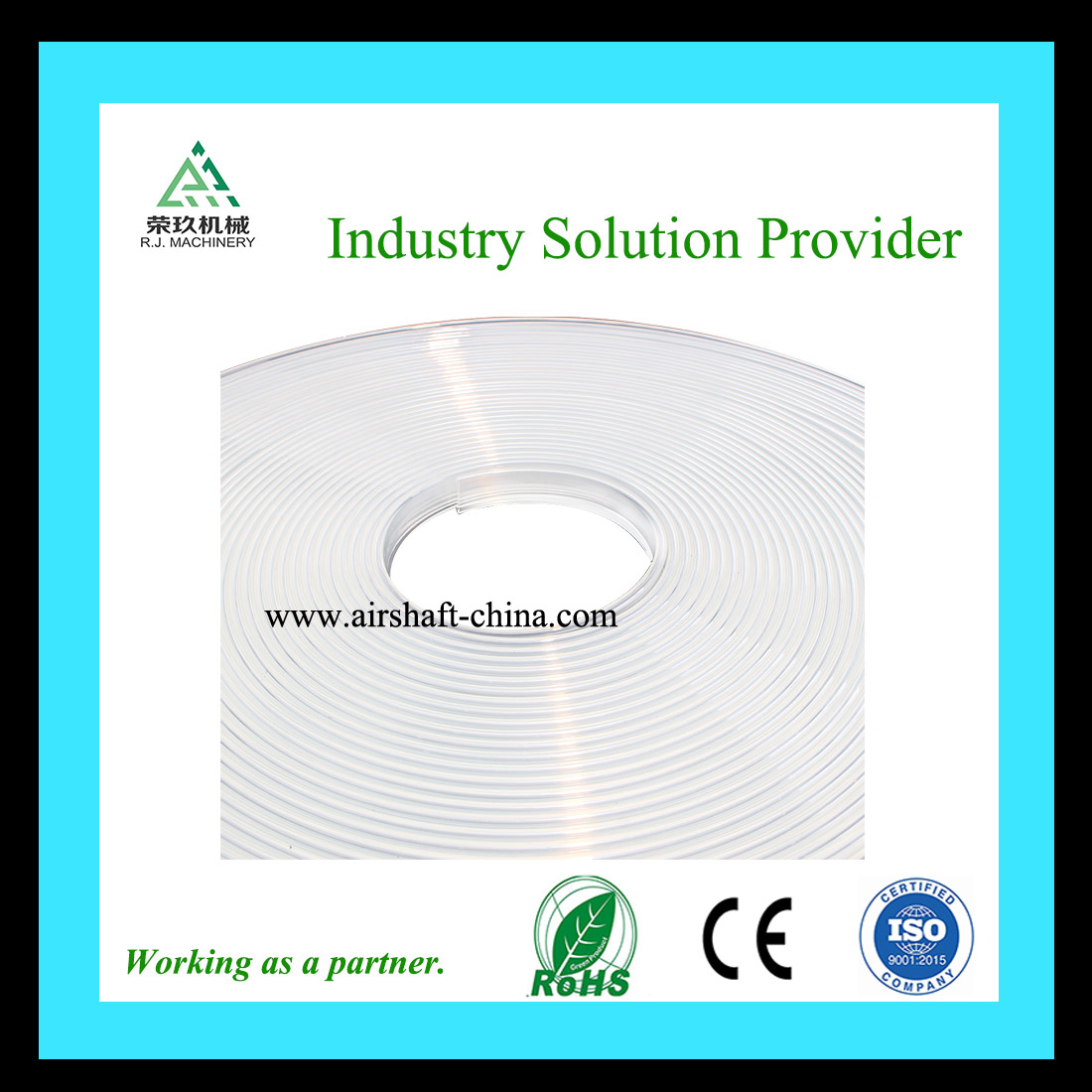

Airshaft Inner Bladder White TPU Tube

--1. Size:Have standard Size and also accept tailor making

--2. Production Time:Normal order is 1 Days, Tailor Making depend on situation

--3. Packing: Paper box

--4. Shipping Solution:By Sea/ By Air / By DHL/FEDEX/UPS/EMS/Special Line

--5. Certificate Supplier:ISO 9000 / CE / Rohs / Certificate of Origin .......

--6. After Sales:Technical video support

--7. Payment Method:T/T / Paypal /Credit Card
Availability:
Quantity:

PDF Export

   --1. Airshaft Inner Bladder Function (White Tpu Tube):

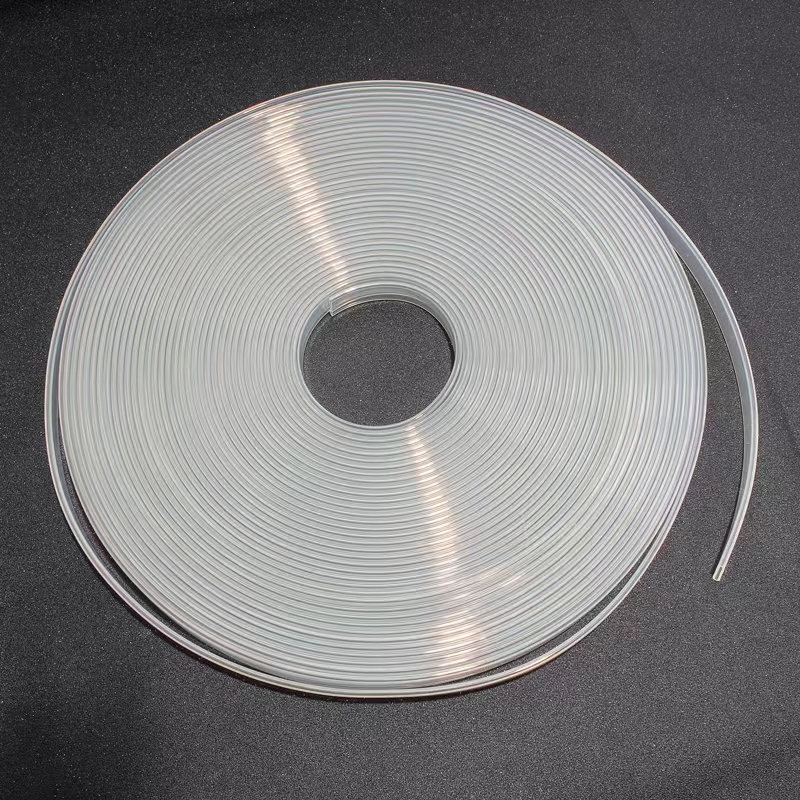

Multitube Airshaft Bladder 01

This White Airshaft Inner Bladder is used in Multitube Airshaft (also known as Multi bladder Airshaft) and Friction Airshaft. It is put inside the groove of the Airshaft to expand.


When working, after inflation air, the Airshaft Tpu tube will expand. It will support the working of the expanding element beyond it. The quality of the Air shaft Inner Bladder will decide the using time of it. In most case, user can use it for at least 2 years if the using environment is friendly.




    --2Airshaft Inner Bladder Feature and Our Advantage

  •        Raw Material is TPU and some other materials which could be used for Airshaft Inner Bladder.

  •         The maximum using temperature is around 90℃=195°F.

  •         The Applicable using Air pressure is around 0.4-0.8 MPA.

        If you have a higher temperature using requirement of the Airshaft Inner Bladder, we will use Silicone as the raw materia. However, the material by silicone is higher in price.



        We are a professtion Airshaft Factory, so in order to guarantee the good using of the Airshaft, we strictly control the raw material.

        The raw material of the Tpu is provided by a Germany company. (strictly Europe quality Level)

        After the production of the Airshaft Tpu Tube, we will do quality checking for dimension and expanding.




        There are some low quality Pneumatic Rubber tube in the Market, and they will have the problem of uneven expanding! When using them for a certain time, the part area won't function.

        In addition, some Tpu tube is easily broken for some raw material reason or production process reason.





    --3. Airshaft Rubber Tube Standard Dimension

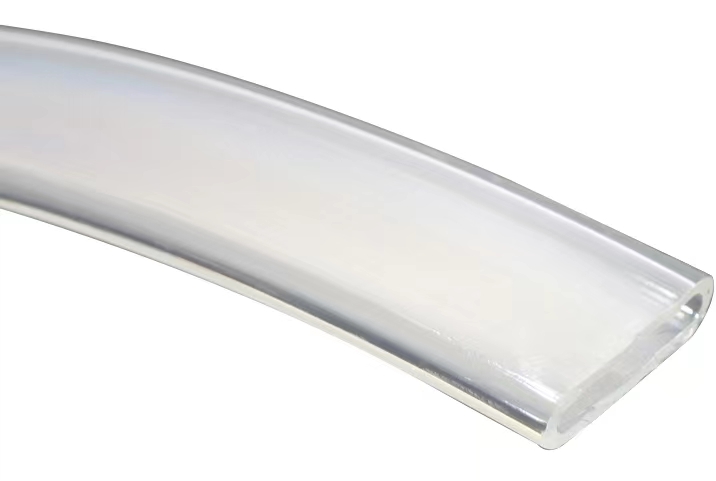

Multitube Airshaft Bladder 03


We have standard size for Air expanding Shaft Inner Bladder. Also welcome if customer have requirement for special Design of Dimension.






The Airshaft White Bladder's Main dimension is the width. The difference of wall thickness will not affect using.

Width and unit wall thickness (unit is MM)

10x0.8
15x1.2

18x1.3

20x1.3

20x1.5
25x1.3
27x1.5
30x1.5
35x1.5
50x3
16x1.3

15mm type tube can replace 16mm type 100%.

15mm is our main type, so enjoy lower cost!

After testing we found it have no difference in using.

...............


We have more dimensions support Tailor make, No limit!

For Airshaft Inner Bladder size 10x0.8, it is 80M for a complete roll.

For Airshaft Inner Bladder size of others, it is 50m for a complete roll.



Welcome both Complete roll order or sampling small quantity order of Airshaft Rubber Tube Hose.



     --4. Airshaft TPU Tube Assembled with Air valve

       During using, the White tube of Air shaft is connected with Air valve. The quality of the Air valve also decides the using time of the Airshaft.

        Normal Airshaft Suppliers are using the Copper Airvalve, and in the past, we were also using the Copper Valve. In order to upgrade our technique, we have finished the upgrade by using f the Stainless Steel!

       According to our experiment and test, the Stainless Steel Type Air valve could achieve a better using effect.

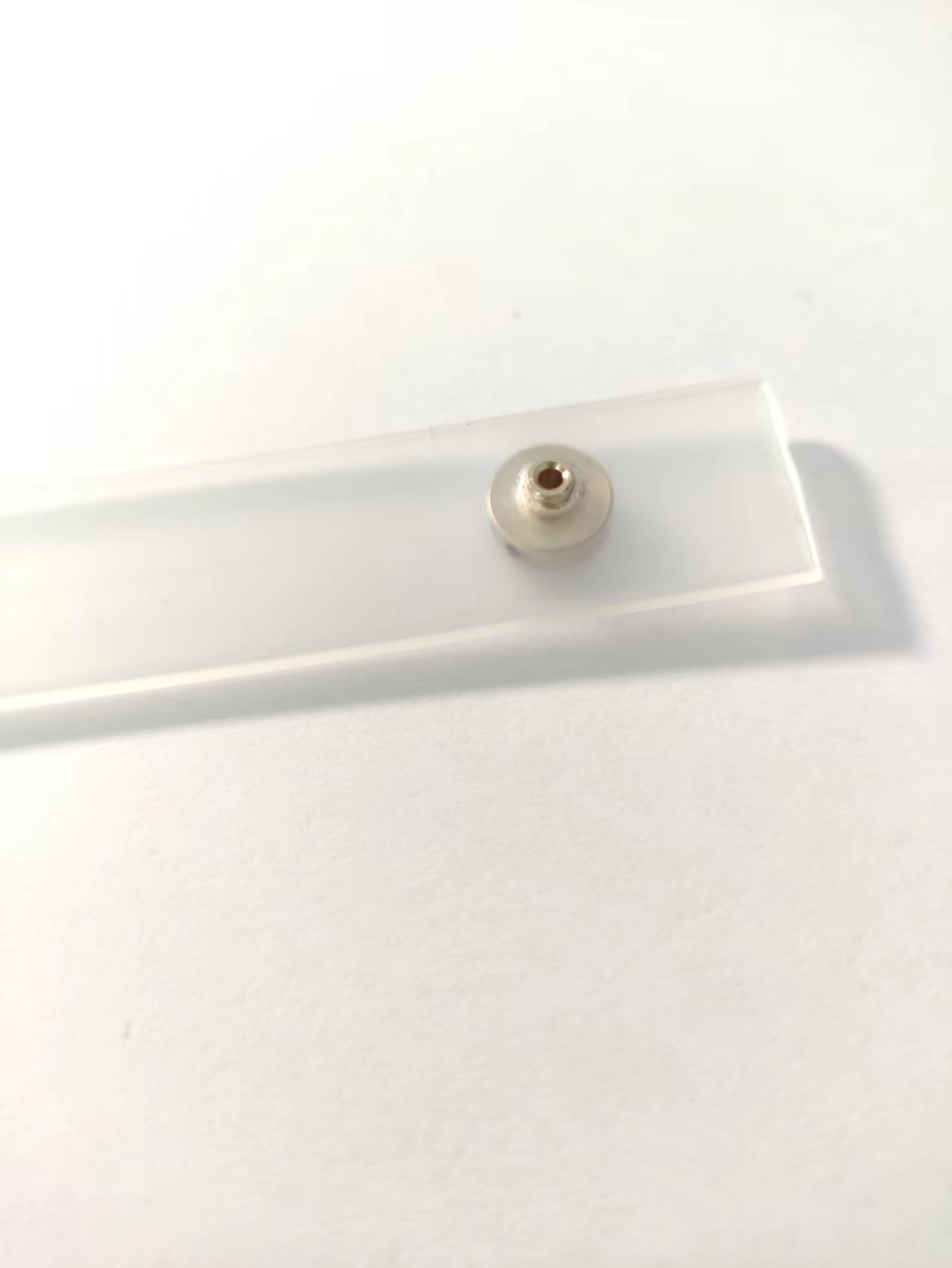

Airshaft white tube with valve

Data:

In the experiment of the 10,000 times air inflation, we found Stainless Steel Type Air valve have a apparent lower possibility of Air leaking.


Finished this experiment on 18th, March, 20222



                                                                                                                                                                                                                                           This is how air valve is connected with TPU tube)



            --5. More about us:

          We, R.J Machinery is confident to say we are a reliable Air shaft factory in China and can make                          large quantity exporting supply and lower quantity customerization!



           Our goal is to make customer feel satisfied about the quality and price of the Airshaft!



           We welcome if you would like to have an online factory tour!

           It only take 1 minute!

           This is the video of Our Factory will fully equipped Airshaft Manufactuering Devices.
