Safety Chuck Light Type

--1. Size:According to the drawings from Customer

--2. Production Time:Normal order is 10-12 Days, Hurry order is negotiable

--3. Packing:Solid paper tube+Bubble Film   /   Exporting level wooden box

--4. Shipping Solution:By Sea/ By Air / By DHL/FEDEX/UPS/EMS/Special Line

--5. Certificate Supplier:ISO 9000 / CE / Rohs / Certificate of Origin .......

--6. After Sales:Technical video support

--7. Payment Method:T/T / Paypal /Credit Card
Availability:
Quantity:

PDF Export

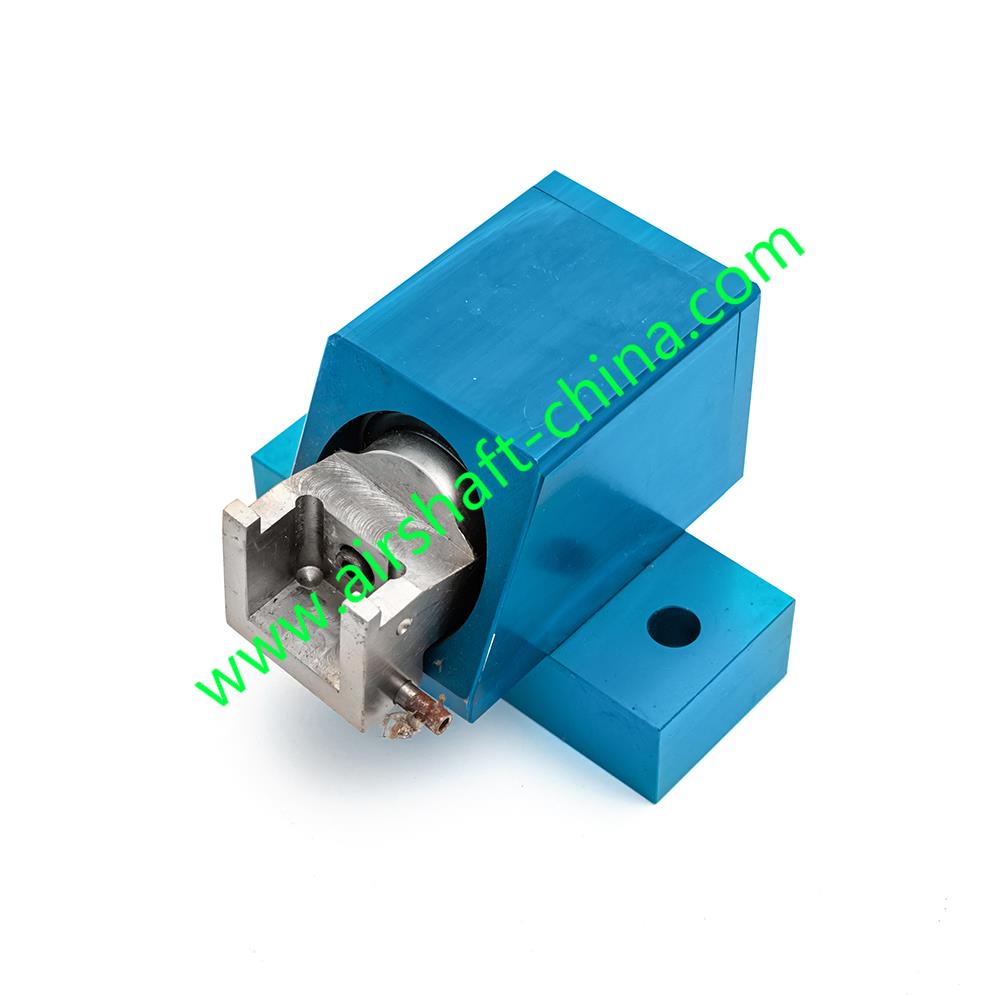

   --1. Safety Chuck Light Type Overall Introduction: (Mostly for Digital Printing Industry)

61

Light Type Safety Chuck have the Same function with the other types safety chucks. Its different point is it is designed for Digital Printing Industry


Its advantage is as the followings:


1. Smaller Weight----only 5kg

2. Easy Handling---- it can open and operate with only 1 finger

3. Lower Cost---- It cost is lower than the traditional Safety Chuck

4. Surface or dimension of the Safety Chuck is ok for tailor make




    --2. Light Type Safety Chuck Type and Dimension:

    The type of the Light Type Safet Chuck is also into 2 types.

    The first one is Foot mounted Safety Chuck. (also known as Seated type Safety Chuck)

    The second type is Flange type Safety Chuck.


The Safety Chuck as standard dimenion, Customers could select the according to the following dimension drawing.

        (Note: Drawing Dimension accept Revisement or Tailor Making)





        (1) 28 Type Safety Chuck (currently only have 28 Type)

型号 Model FLO/FLW 28--Flange STO/STW 28--Seated
极限承重

Maximum Weight Load Ability

300kg 300kg
极限扭矩 Maximum Torque kg/m (N/m) 10 (100) 10 (100)
气涨轴方口尺寸

Airshaft Square Dimension

 (enter inside safety chuck)

25-30mm 25-30mm
卡盘自重 Self Net Weight 5kg 5kg

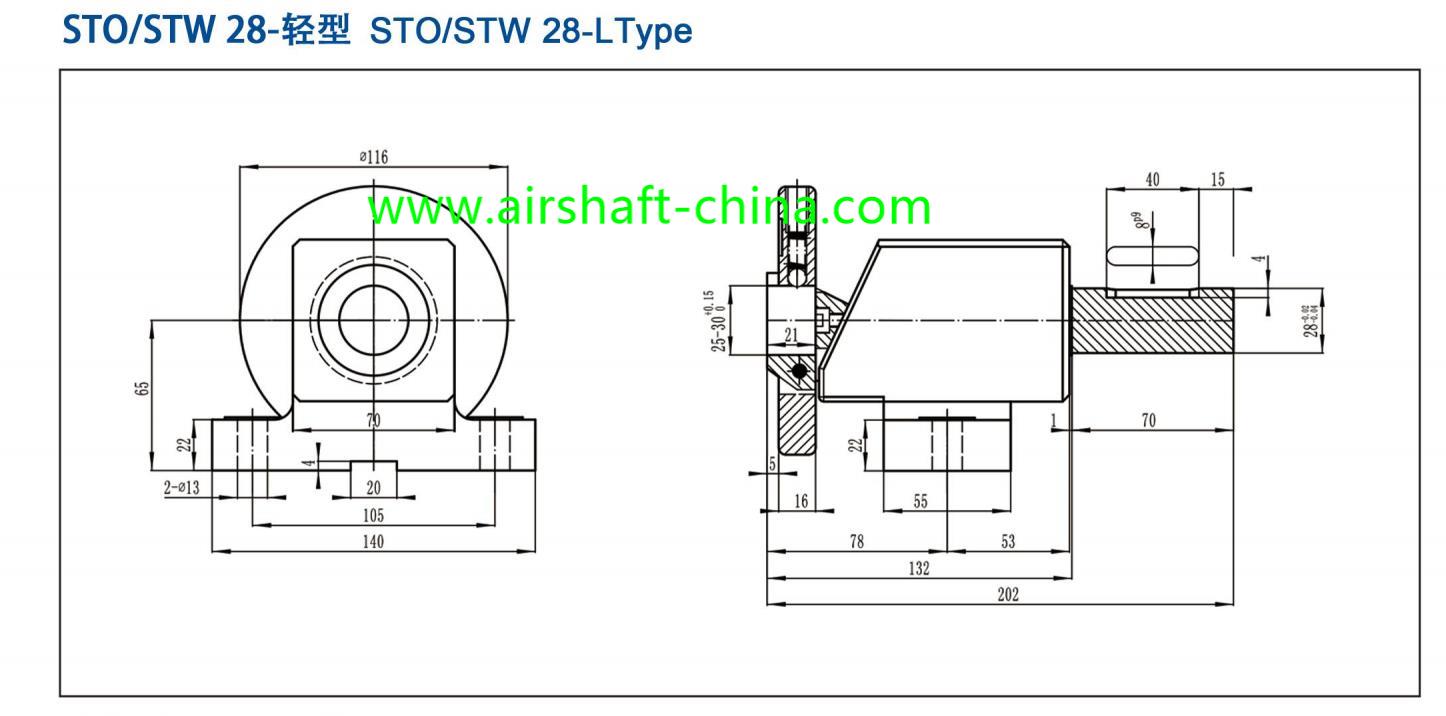

轻型1

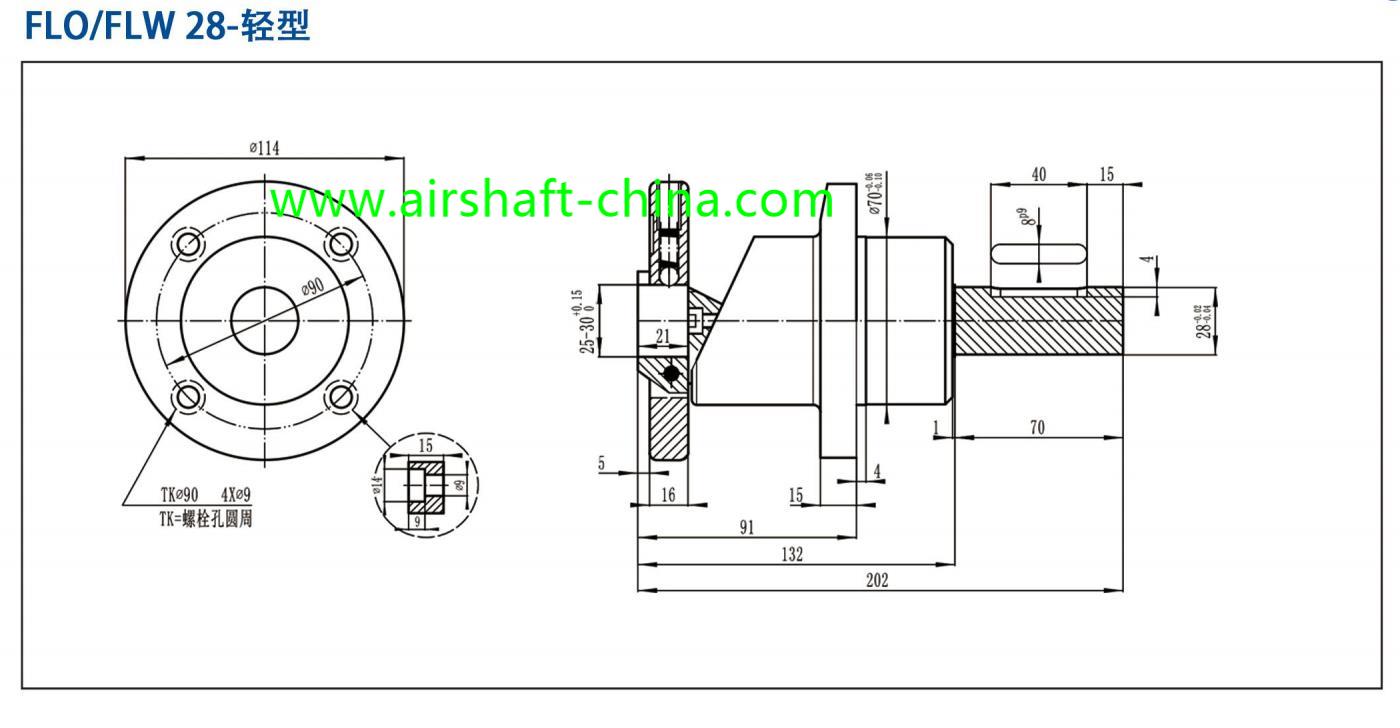

轻型2



       If you still have question of the type of your Safety Chuck, You can send the photo to Sales: TerrenceQi@outlook.com


        --3. Overall Description of Safety Chuck:

        The Safety chuck's Quality is very important for machine function. We guarantee that we are able to provide the most high Quality Safety Chuck.

          The low quality Safety Chuck, will result in some issues. Here we have repairing experience, if you are interested, you can contact the Seller for some photos.




            --4. More about us as a Safety Chuck Supplier:

          We, R.J Machinery is confident to say we are a reliable Air shaft and Safety Chuck factory in China and can make large quantity exporting supply and lower quantity customerization!



           Our goal is to make customer feel satisfied about the quality and price of the Safety Chuck and Airshaft!



           We welcome if you would like to have an online factory tour!

           It only take 1 minute!

           This is the video of Our Factory will fully equipped Airshaft and Aluminum Roller Manufactuering Devices.
