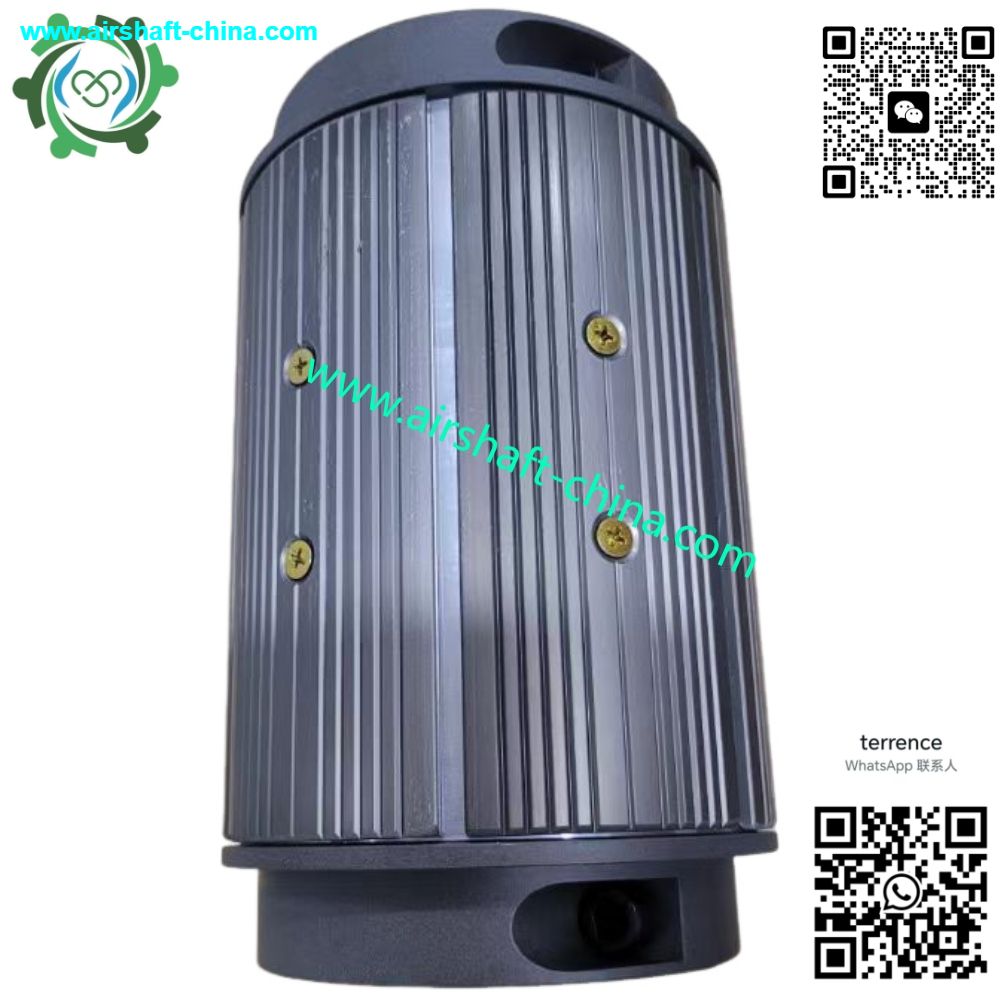

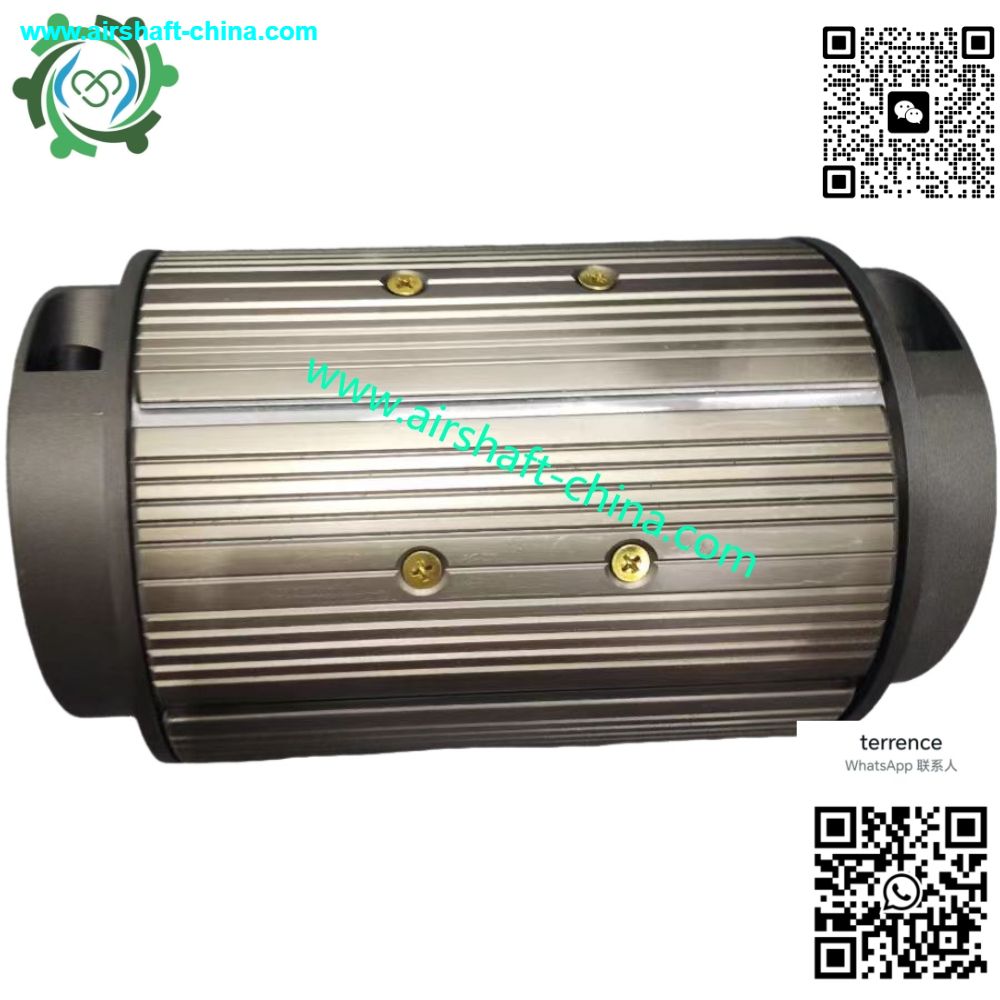

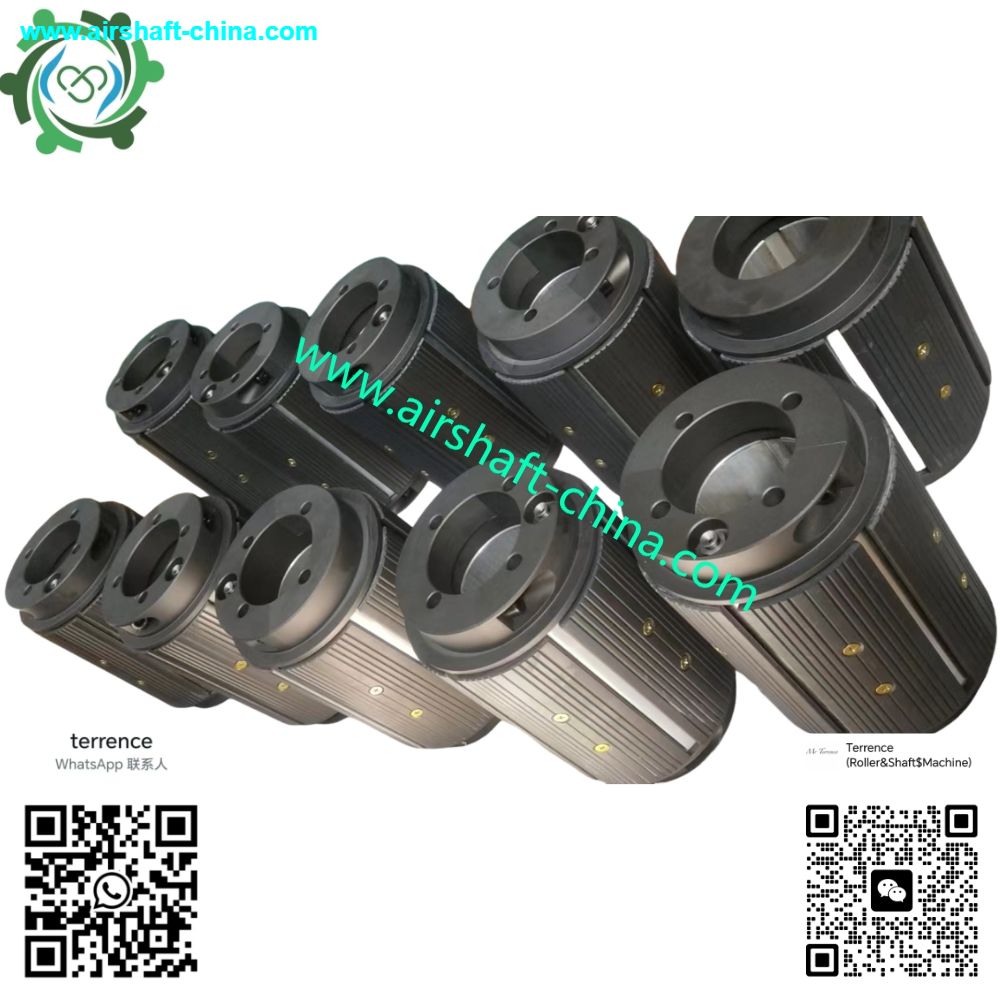

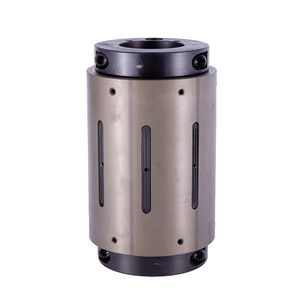

(3) Guidance of ---- Leaf Type Air Shaft Adaptor

--1. Size: According to the drawings from Customer or Standard Factory Type

--2. Production Time: Standard Type 1-3 days. Normal order is 10-12 Days, Hurry order is negotiable

--3. Packing: Paper Box   /   Exporting level wooden box

--4. Shipping Solution: By Sea/ By Air / By DHL/FEDEX/UPS/EMS/Special Line

--5. Certificate Supplier: ISO 9000 / CE / Rohs / Certificate of Origin .......

--6. After Sales: Technical video support

--7. Payment Method: T/T / Paypal /Credit Card

  • Any Length According to requirement

  • Steel/Aluminum/Carbon Fiber

  • /

  • 1day

  • paper box

  • By Sea / By Air / By Train / By Fedex or other Express way

  • ISO9000/CE/ROHS/Certificate of Origin

  • Technical Video Support

  • T/T/Credit Card/Paypal.....

Availability:
Quantity:
Inquire Add to Basket

PDF Export

1. How to use the Leaf type adaptor of air shaft?

       Step 1:  put adaptor on air shaft body (2pcs as one set on 1 airshaft is better)

       Step 2:  pump air inside the airshaft, to fix and hold the adaptor

        Step 3:  put 6inch paper tube on the air shaft adapter

         Step 4:  pump air inside the airshaft adaptor

         then working.



2. Feature of the Leaf type airshaft adaptor

    1. fully expanding like a circle----suitable for cutting knife directly touching on body.

    2. fully aluminum produced---- light weight 7-8kg/pc





3. Disadvantage of the this airshaft adaptor

       (1):  repairing and maintenance is like lug type need to disassemble the full set







4. Recommendation:

    If you cut it for cutting process or require ultra light weight, then i recommend leaf type airshaft adaptor.







Technical Data of the Pneumatic Adaptor of Airshaft

Specification 3-6 inch Airshaft Adaptor 3-8 inch Airshaft Adaptor 3-10 inch Airshaft Adaptor
OD before inflation 150mm 200mm 250mm
OD after inflation 158mm 208mm 258mm
Suitable Core ID around 152.4mm around 203mm around 253mm
Estimated Weight  7kg Depend on drawing Depend on drawing





           This is the video of Our Factory will fully equipped Airshaft Manufactuering Devices.
