The Friction Airshaft is driven by the motor to wind up. After the Friction Shaft is connected with the air source, the Friction Rings rotates with the Friction Airshaft steel body due to the expansion of the air tube, so as to support the convex keys or balls on the Friction ring and play the role of clamping the Core on it. (core means paper tube or plastic tube or others)
During operation, the Friction Ring is controlled to slip with a certain slip torque value (torque), and the slip amount just compensates for the resulting speed difference, so as to accurately control the tension of each roll of material, achieve constant tension coiling, and ensure the coiling quality.
With the progress of winding materials, the tension required increases with the increase of winding diameter of winding materials. The tension is increased by adjusting the air pressure through the pneumatic system. The air pressure increases, the tension increases, the air pressure decreases, and the tension decreases.
For the 3inch type Air Friction Shaft, in China, our Friction Ring standard Inner diameter is 60mm, Outside diameter is 75mm. This dimension could be designed by customer. But price may change accordingly.
The Ring width as standard is 25mm. But if customer have different cutting width, as a professional Friction Shaft Factory and Airshaft Supplier, we support smaller or bigger dimension customerization.
In order to reduce weight, some customers would like to using some Friction Airshaft ring parts by aluminum or nylon.
We are able to provide solutions.

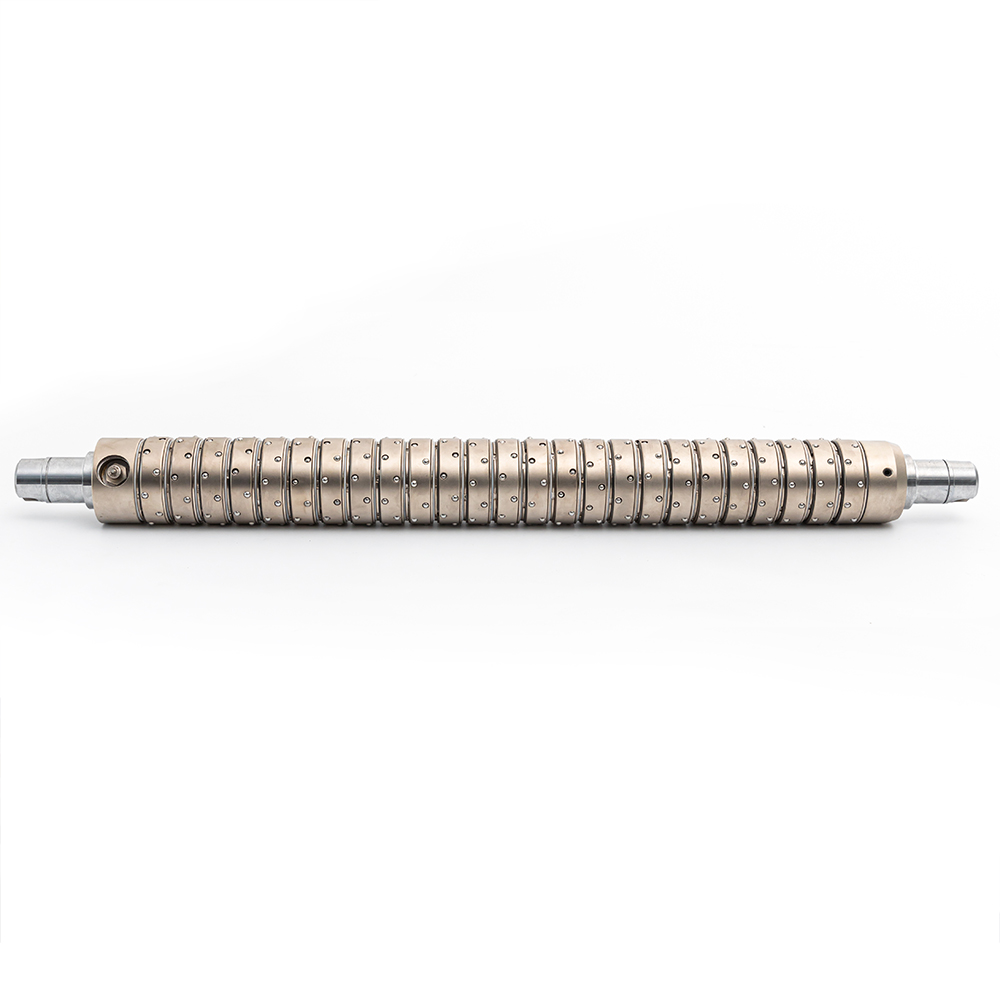

Ball Type Friction Ring
Key + Ball Type Friction Ring
The Friction Airshafts in 99.99% case, their inner body is made by steel. The body steel tube of the Friction Shafts as our standard have 3 inner grooves. Inside the grooves, there will be friction felt and air tube.
Weight load ability example: 3inch
2000mm length Air shaft ---- weight load 500kg as maximum
The length of the body tube of the airshafts will decide the cost of 1piece Air shaft.
Our factory is ok to make Friction Type Air shafts at any length and any diameter.
Just need to give us a drawing and tell us the weight load!
Then we can help any things related with air expanding shaft!
For more details please contact Airshaft sales: TerrenceQi@outlook.com
Don't worry weight load and dimension, as a reliable Airshaft Factory, We accept all dimension Air shaft tailor making!
Bigger than Bigger

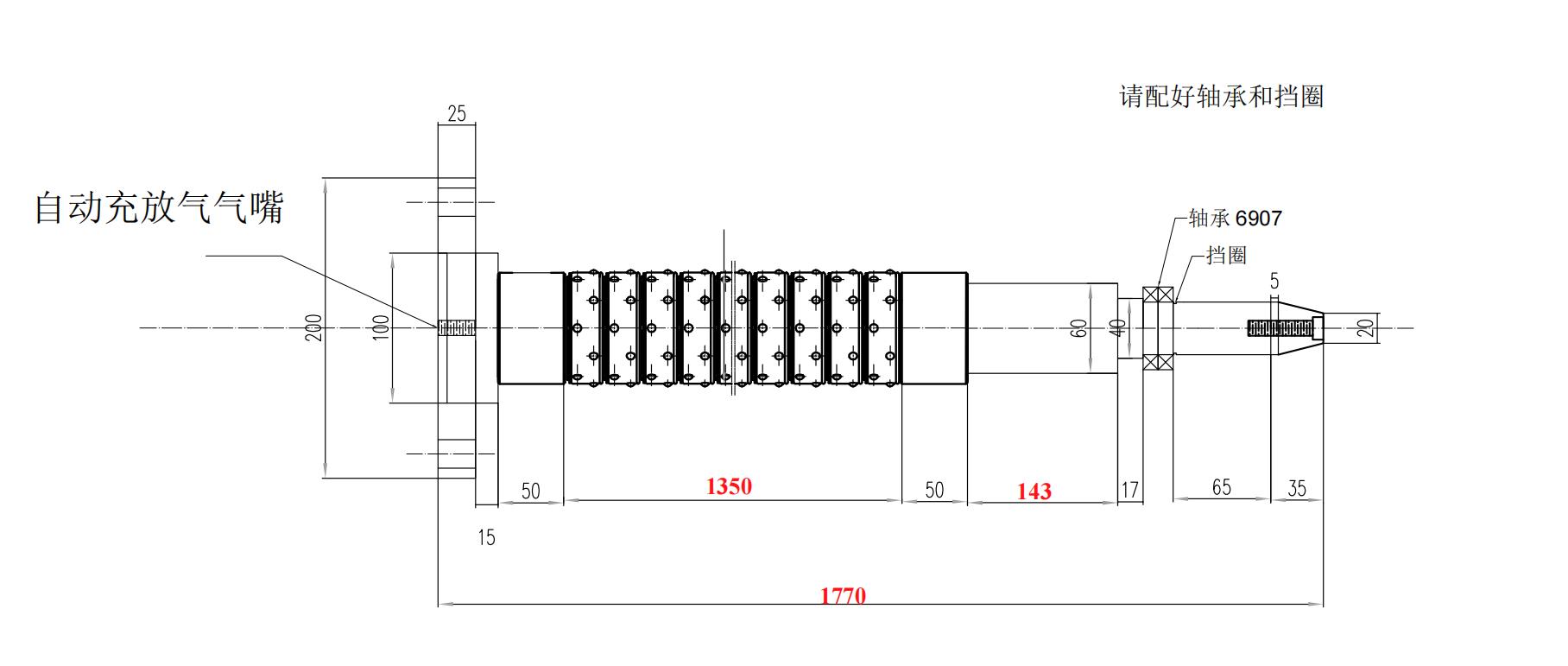

We have a lot of drawing example for customer reference.
We have can make the 2 sides of the Airshafts according to requirements!
If the Air shaft using poor quality air valve, then it will often leaking air, and then result into using trouble!
Normal Airshaft Suppliers are using the copper material air valve in order to saving cost,
However, This type Copper Valve have a higher possibility of air leaking,
For us, we are using the high quality Stainless Steel Air Valve, it is more more stable in quality!

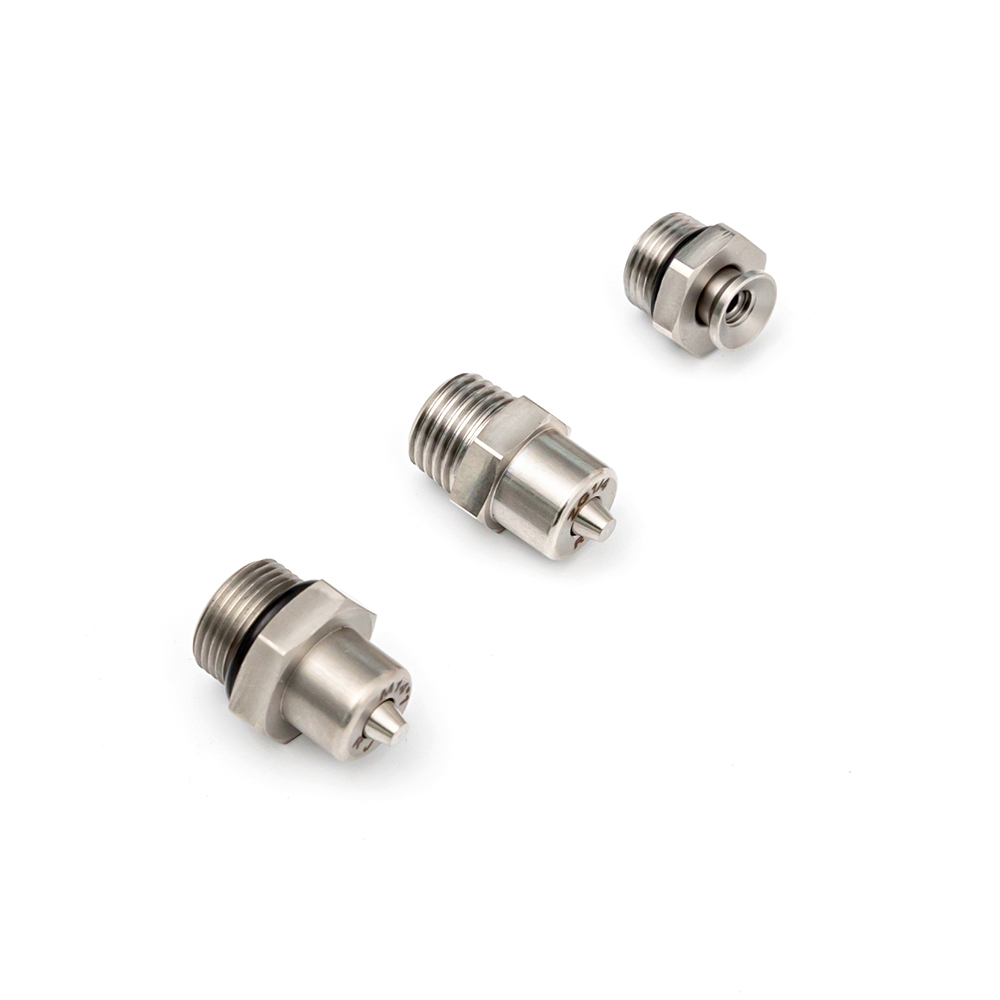

Better Staineless Steel Airshaft Air Valve 【√】

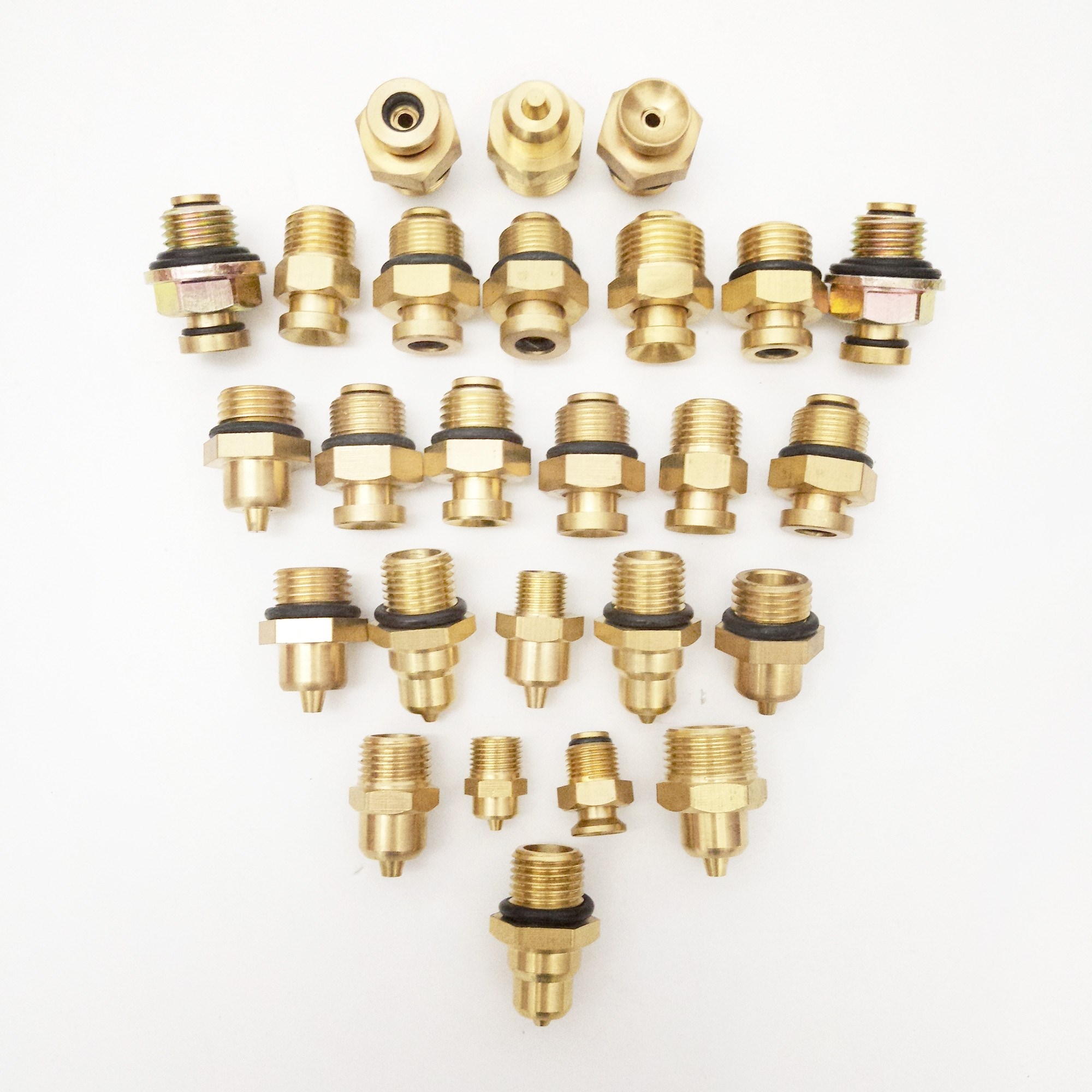

Normal Copper Air valve for Air shaft
We don't want to see the machine stop production just for reason of a small Air valve.
Therefore, a good AirShaft with better Air Inflation Valve will help users to avoid a lot of using troubles.
We Guarantee the long time using of Air inflation Valve on the Airshaft!
The Inner Bladder or Inner Tube of the Friction Type Airshaft is the most special type.
For reason of the special structure of the inflatable shaft, it use the Flat TPU tube as the expanding tube.
Each groove has one pieces Bladder. If one Airshaft have 6 groove, length 1m, then it will use 6m of the Air tube.
Our company are using high quality TPU raw material, It can ensure the good using of the airshaft.
Each roll of the Airshaft Inner Bladder is 50m, it is ok for purchasing for spare parts.
It is for connection the air, so it quality is also very important.
Air shaft smaller Air valve 1
Air shaft smaller Air valve 2
In order to improve the quality and ensure the using experience of Airshaft for customer,
Our company also upgrade the copper matertial in Stainless steel. It has lower possibilty of air leaking!
Our goal is to make customer feel satisfied about the quality and price of the Airshaft!
We welcome if you would like to have an online factory tour!
It only take 1 minute!
This is the video of Our Factory will fully equipped Airshaft Manufactuering Devices.
Using wechat and Scan this code to talk with Airshaft Sales!
Mr Terrence
