Any Length According to Customer Dimension Drawing
Steel/Aluminum/Carbon Fiber
Depend on Design
10-12 Days for Normal Order, Hurry Order is Negotiable
Wooden Box / Paper Box / Paper tube / Bubble Film
By Sea / By Air / By Train / By Fedex or other Express way
ISO9000/CE/ROHS/Certificate of Origin
Technical Video Support
T/T/Credit Card/Paypal.....
Availability: | |
---|---|
Quantity: | |
PDF Export | |

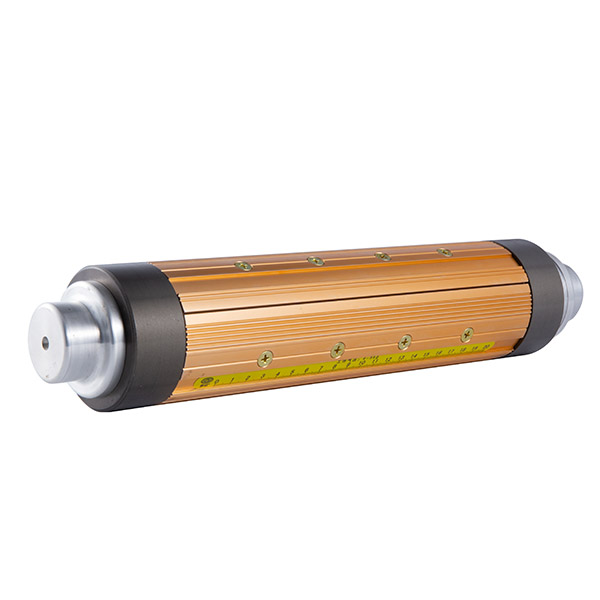

Leaf type Air shaft is suitable for unwinding after slitting/cutting and cantilever single shaft winding.
The leaf one the Airshaft is able for expanding. It is more stable and can provide a balance during the rotation.
For this reason, this type Air shaft has a longer using time.
The expanding Leaf the Leaf Type Airshaft is made by aluminum,
The inner tube in normal is steel, aluminum is also ok for using.
The leaf is on the surface of the tube.
As a professional Airshaft Manufacturer and Airshaft Factory, We provide high quality Airshaft expanding Leaf.
Our normal Airshaft body material:
---Steel
---Aluminum
---Fully Stainless steel
In normal case, We use Steel as the inner body tube.
Some customer's weight load is smaller and want to reduce shaft weight, in this case, we recommend inner tube by fully aluminum.
The length of the body tube of the airshafts and the thickness will decide the cost of 1piece Air shaft.
Our factory is ok to make Leaf type Air shafts at any length and any diameter.
Just need to give us a drawing and tell us the weight load!
Then we can help any things related with air expanding shaft!
Airshaft Diameter Chart (Unit: mm) | 1inch | 2inch | 3inch | 4inch | 5inch | 6inch | 8inch | 10inch | 12inch |
Diameter before expanding | 24 | 49 | 74 | 98 | 124 | 149 | 200 | 250 | 300 |
Diameter after expanding | 28-32 | 52-54 | 79-82 | 103-105 | 129-131 | 154-158 | 205-207 | 255-257 | 305-307 |
Applicable core inner diameter | 26-30 | 50-52 | 75-79 | 99-103 | 126-128 | 152-154 | 202-204 | 252-54 | 302-304 |
Weight load Ability by steel | 40 | 150 | 800 | 1500 | 2000 | 3000 | 4500 | 5500 | 6500 |
Weight load Ability by Aluminum | - | - | 500 | 950 | 1300 | 2000 | 2800 | 3800 | 4600 |
(This chart is only for reference, for more details please contact Airshaft sales: TerrenceQi@outlook.com)
Don't worry weight load and dimension, as a reliable Airshaft Factory, We accept all dimension Air shaft tailor making!

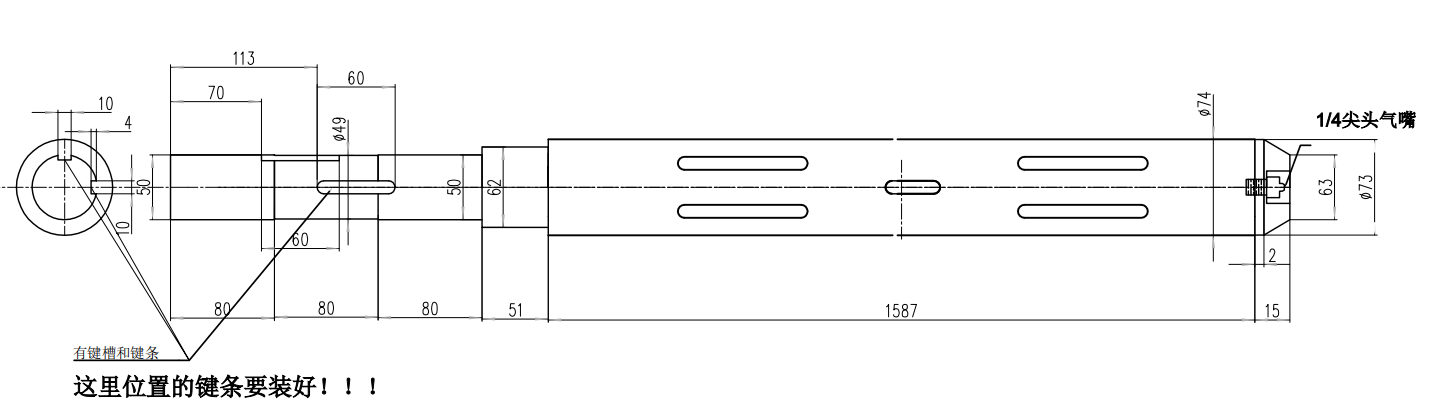

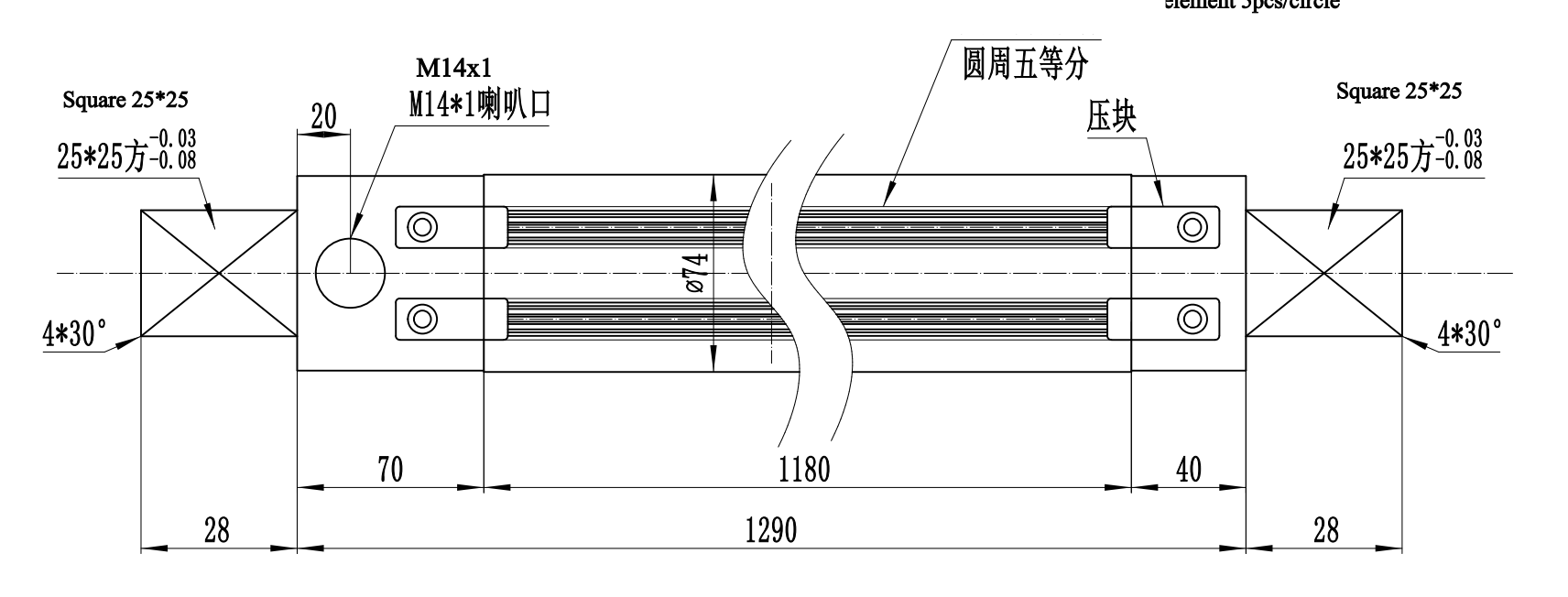

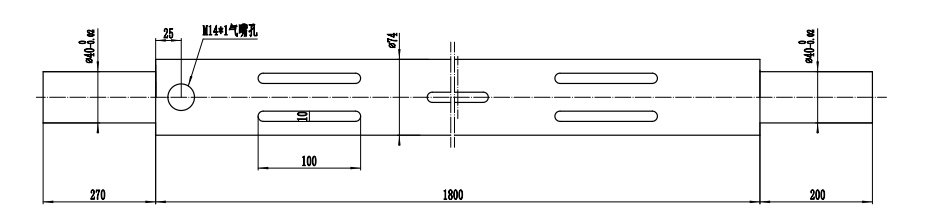

We have a lot of drawing example for customer reference.
We have can make the 2 sides of the Airshafts according to requirements!
If the Air shaft using poor quality air valve, then it will often leaking air, and then result into using trouble!
Normal Airshaft Suppliers are using the copper material air valve in order to saving cost,
However, This type Copper Valve have a higher possibility of air leaking,
For us, we are using the high quality Stainless Steel Air Valve, it is more more stable in quality!
Better Staineless Steel Airshaft Air Valve 【√】
Normal Copper Air valve for Air shaft
We don't want to see the machine stop production just for reason of a small Air valve.
Therefore, a good AirShaft with better Air Inflation Valve will help users to avoid a lot of using troubles.
We Guarantee the long time using of Air inflation Valve on the Airshaft!
The air will go through into the Black Rubber tube, then expand the whole lugs to grab the core on airshafts.
If the airshaft inner bladder have low quality, it will result into the uneven expanding. It means most part of the Leaf are not expanding.
As a result, the Air shaft cannot hold the core. It would caused big trouble, need to disassemble the whole airshaft to replace this parts. (Time consuming and wasting)
So, our company are using high quality NBR Rubber, It can ensure the good using of the airshaft.
Leaf type airshaft is also often using in all industries, especially popular in Slitting or cutting machine industry.
1. Expandable leaves: Leaf type airshaft has a series of expandable leaves that grip the inner core of the roll tightly as air is introduced into the shaft. This provides a secure and stable hold on the roll during processing. So, slitting machine and cutting machine use it more often. It could provide better grip of the paper tube and ensure the smooth work of cutting.
2. Easy to install: These airshafts are easy to install and require minimal maintenance, which makes them ideal for use in high-volume production environments.
Versatile: Leaf type airshafts can be used with a variety of materials, including paper, film, and textiles.
3. Accurate tension control: The leaf type airshaft provides accurate and consistent tension control during processing, which helps to ensure high-quality output.
4. Customizable: Leaf type airshafts can be customized to fit specific needs, including size, weight capacity, and material type.
5. Leaf type airshaft can be made into some mechanical stucture airshaft. It can make the using of the airshaft more convenient.
Overall, leaf type airshafts offer a range of features that make them a popular choice for use in various industries. Their expandable leaves, ease of installation, versatility, accurate tension control, improved productivity, and customizability all contribute to their popularity in the manufacturing industry.
Our goal is to make customer feel satisfied about the quality and price of the Airshaft!
We welcome if you would like to have an online factory tour!
It only take 1 minute!
This is the video of Our Factory will fully equipped Airshaft Manufactuering Devices.
Using wechat and Scan this code to talk with Airshaft Sales!
Mr Terrence
Using Whatsapp and Scan this code to talk with Airshaft Sales!
Mr Terrence
